The Quik Reel is a clutch-driven, remote-controlled retractable hose reel with the smallest footprint in the Intelli-spray range — designed for ATVs, UTVs and compact spray systems.
Compact Remote Control Hose Reel for ATV, UTV & Spray Systems
The Quik Reel is Intelli-spray's compact, clutch-driven 12V remote-controlled hose reel, designed for smooth hose retraction, improved operator control and efficient spraying in space-limited setups.
Built with a durable 304 grade stainless-steel frame, the Quik Reel gives operators a practical way to upgrade from manual hose winding to powered remote-controlled rewind. Available in 50m, 100m and 200m configurations, it helps you spray further, retract faster and reduce fatigue during day-to-day field work.
With the smallest footprint in the Intelli-spray range, the Quik Reel is ideal for UTVs, ATVs, compact spray units and existing spray systems where space, weight and hose control are important.

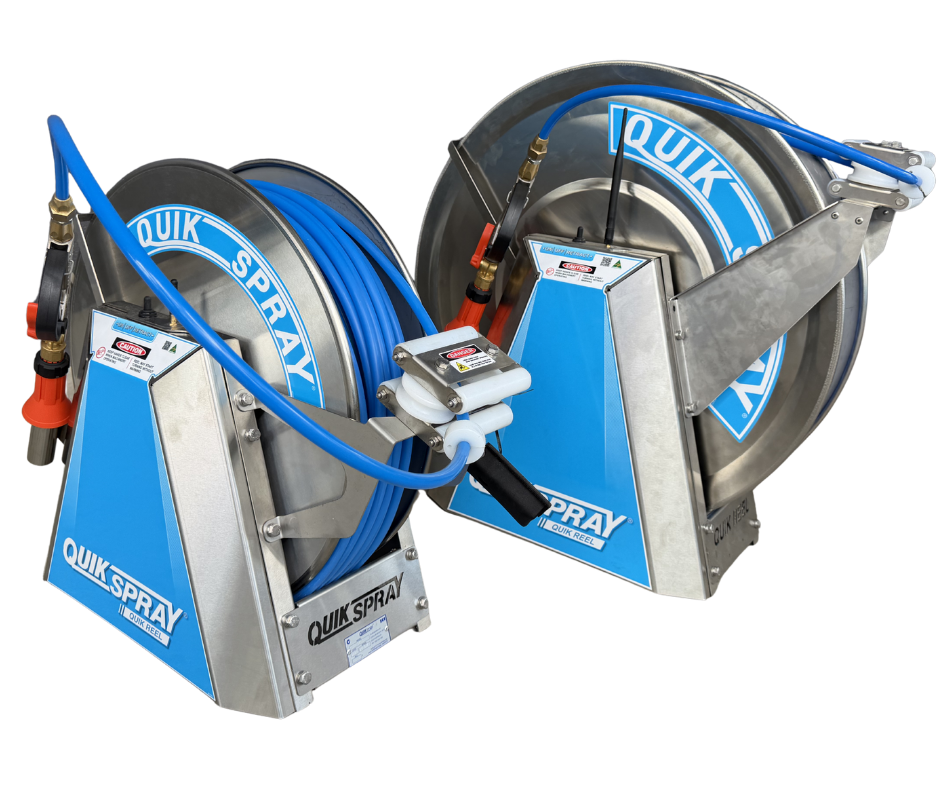

Quik Reel Hose Length Options: QR50, QR100 & QR200
All three models share the same durable stainless-steel build, clutch-driven motor and 915 MHz remote system. Imperial measurements shown first for US and international operators.
QR50
Ideal for compact ATV and UTV setups, smaller properties, orchards or anywhere tight clearance and light weight matter most.
- Length27.6 in (700 mm)
- Width11.4 in (290 mm)
- Height23.2 in (590 mm)
- Dry Weight63.9 lbs (29 kg)
- Swivel optionAvailable
QR100
The go-to choice for mid-size farms, ranches and rural operations. Covers fence lines and paddock boundaries with enough reach to minimise vehicle repositioning.
- Length27.6 in (700 mm)
- Width11.4 in / 12.8 in with swivel
- Height23.2 in (590 mm)
- Dry Weight63.9 lbs (29 kg)
- Swivel optionAvailable
QR200
For large-scale operations — golf courses, highway vegetation management, large ranches and rural properties where maximum reach and minimum repositioning count.
- Length28.7 in (730 mm)
- Width11.6 in (294 mm)
- Height29.5 in (750 mm)
- Dry Weight77.2 lbs (35 kg)
- Swivel optionStandard
Model Comparison
| Feature | QR50 | QR100 ★ | QR200 |
|---|---|---|---|
| Hose Length | 164 ft (50m) | 328 ft (100m) | 656 ft (200m) |
| Dry Weight | 63.9 lbs (29 kg) | 63.9 lbs (29 kg) | 77.2 lbs (35 kg) |
| L × W × H | 27.6 × 11.4 × 23.2 in | 27.6 × 11.4 × 23.2 in | 28.7 × 11.6 × 29.5 in |
| Swivel option | Optional | Optional | Standard |
| Motor | 12V, 150W, 60 RPM, 13 Nm clutch-driven | ||
| Remote control | ✓ 915 MHz | ✓ 915 MHz | ✓ 915 MHz |
| Easy-Walk Spool | ✓ | ✓ | ✓ |
| 304 SS frame | ✓ | ✓ | ✓ |
| Best for | Compact ATV/UTV, small acreage | Mid-size farms, ranches, sports fields | Large properties, golf courses, contractors |
★ Most popular model
Built for the Field
Powerful 12V Motor
A clutch-driven 12V, 150-watt motor delivers smooth, snag-free hose retraction at 60 RPM with 13 Nm torque — even in dense vegetation and around tree lines. Includes a 30A resettable circuit breaker and 4-meter heavy-duty wiring loom with Anderson plug.
915 MHz Remote Control
Handheld transmitter lets the operator rewind hose from anywhere in the field without returning to the vehicle. Cover twice the area in the same amount of time — a genuine productivity gain for one-person operations.
304 Stainless Steel Frame
The entire framework is fabricated from 304 grade stainless steel for long-term corrosion resistance — critical for operators regularly using herbicide or agricultural chemicals in the field.
Maximum Flexibility
Fully reversible mounting with pivoting couplings allows the hose to be reeled in from either direction. An adjustable friction brake prevents overrunning for smooth, tangle-free operation.
Quik Release Drum Fitting
Tool-free Quik Release hose-to-reel drum fitting for fast connection and disconnection. Includes a manual on/off/momentary switch at the reel as backup, independent of the remote.
Drop-In Upgrade
Reel-only unit with a stainless steel slip-on framework — a straightforward upgrade for operators replacing a manual reel on their existing spray setup. No full system replacement required.
The Easy-Walk Spool System
The Easy-Walk Spool System is the latest advance in hose reel management from Intelli-spray. When operators need to walk long hose lengths through paddocks, fence lines or tricky terrain, Easy-Walk takes the strain out — feeding smoothly without bunching, kinking or catching.
Combined with the 915 MHz remote, one operator can walk out a full hose length and rewind from wherever they're standing. No return trip to the vehicle.
Built for These Applications
- Dense tree lines and orchard rows
- Fence lines and boundary spraying
- Paddock and ranch weed control
- Golf courses and sports fields
- Highway and roadside vegetation management
- Remote and off-grid farm operations
- Municipal parks and open-space spraying
Specifications
| Motor | Clutch-driven 12V, 90°, 60 RPM — 13 Nm torque, 300W output, 1.50 drive ratio |
| Remote Radio | 915 MHz remote control with handheld transmitter — rewinds hose from field position |
| Hose Capacity | 164 ft / 50m (QR50) • 328 ft / 100m (QR100) • 656 ft / 200m (QR200) — Supa-Slip® ⅜" ID hose |
| Framework | 304 grade stainless steel throughout |
| Key Features | Quik Release hose-to-reel drum fitting • Manual on/off/momentary switch at reel |
| Electrical | 30A resettable circuit breaker • Anderson plug • 4m heavy-duty wiring loom |
| Warranty | 12-month warranty on reel and radio receiver |
| Measurement | QR50 / QR100 — No Swivel | QR50 / QR100 — With Swivel | QR200 — With Swivel |
|---|---|---|---|
| Length | 27.6 in (700 mm) | 27.6 in (700 mm) | 28.7 in (730 mm) |
| Width | 11.4 in (290 mm) | 12.8 in (325 mm) | 11.6 in (294 mm) |
| Height | 23.2 in (590 mm) | 23.2 in (590 mm) | 29.5 in (750 mm) |
| Dry Weight | 63.9 lbs (29 kg) | 63.9 lbs (29 kg) | 77.2 lbs (35 kg) |
* 12-volt motors are not recommended to assist the operator on steep hills. Contact your distributor to discuss terrain requirements.
Both are heavy-duty twin reel spray systems with the same Bertolini PA530 pump and 2 × 200m hose capacity. The key difference is the motor: the 9TDE uses a GX270 Honda petrol motor, while the 9TBE uses a 9HP Honda petrol motor with electric key start. The 9TDE is often preferred for operations where diesel fuel availability is preferred over petrol, and is mine-spec compliant. Contact our team for a specific recommendation for your operation. Mechanical clutch reel drive (used on 9TDE, 9TBE, SDE models) draws power directly from the engine via a mechanical coupling. It's robust and reliable for heavy commercial use. 12V electric reel drive (Silver Series, QR100) uses the vehicle's or a dedicated 12V battery to power the reel motor — offering smoother, quieter operation and no engine running during reel rewind. For a standard pickup (F-150, RAM, Silverado etc.), the 5SDE or 9SDE single reel systems are popular due to their compact footprint on the truck bed. The FTB Locker System is purpose-designed for flatbed trucks with its weatherproof lockable enclosure. For maximum productivity with two operators, the 9TBE or 9TDE twin reel systems can also be fitted to larger truck beds or flatbed trailers. Complete the enquiry form with your vehicle type, application, and preferred hose reel configuration. Our team will provide a quote and connect you with B&J Trading LLC (USA) or Veseris (Canada) for local pricing and delivery. The Intelli-spray Quik Reel Range covers every hose reel application — from compact 12V electric reels for light vehicles to heavy-duty twin reel systems for professional commercial spraying. Every model features auto-rewind technology and is built from 304 stainless steel with Supa-Slip hose engineered for smooth retrieval in demanding field conditions. Choosing the right hose reel system depends on your vehicle type, required hose length, power source, and operational workload. Use the comparison below to identify the right model, or complete the enquiry form and our team will recommend the best fit for your specific operation in the USA or Canada. Not sure which reel is right for your vehicle? Complete the enquiry form — tell us your vehicle type, required hose length, and application, and our team will recommend the best model and connect you with your nearest distributor in the USA or Canada.Hose Reel Range FAQs
How do I choose between the 9TDE and 9TBE twin reel systems?
What is the difference between mechanical clutch and 12V electric reel drive?
Which reel system is best for a pickup truck?
How do I order a hose reel system for my operation?
Retractable Hose Reel System Range — Find the Right Reel for Your Operation
Model Reels Drive Motor Hose Capacity Best For 9TDE Twin Mechanical clutch GX270 Honda Petrol 2 × 200m Heavy commercial use, dual operators 9TBE Twin Mechanical clutch 9HP Honda + electric start 2 × 200m Heavy-duty twin reel farm/contractor 5SDE/9SDE Single Mechanical clutch GX160/GX270 Honda 1 × 200m Solo operators, compact setups Silver Series Single/Twin 12V electric GX200 + 12V reel motor Up to 2 × 200m Premium smooth operation QR100 Single (12V) 12V electric Vehicle 12V system Up to 150m Light vehicles, upgrade from manual
